Terrier Pipe Lifting Clamps
Terrier Pipe Lifting Clamps TPH(-HD) pipe hooks are used exclusively for horizontal lifting and transporting of pipes.
The hooks can only be used in pairs using a two-leg sling or spreader beam. Compact and lightweight in design, Terrier TPH(-HD) pipe hooks have a high lifting capacity.
SEE MORE MATERIAL HANDLING & LIFTING EQUIPMENT FROM TERRIER, HARRINGTON & CALDWELL, CLICK HERE
TPH / TPH-HD

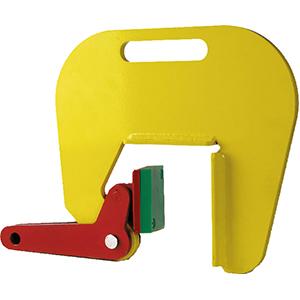

Terrier Pipe Lifting Clamps
Heavy duty clamp with high pressure resistant plastic for horizontal pipe lifting
Application:
- For horizontal lifting and transporting of steel and concrete pipes without damaging the product
- TPH-HD version is specially designed for extreme heavy duty lifting situations (eg . loading and unloading ships)
- Terrier TPH lifting clamps must always be used in pairs
- Jaw openings available up to 70 mm
- Working load limit (WLL) 1500 – 60000kg per pair (Higher WLL available upon request)
Features and benefits:
- TPH Jaw is covered with a special high quality pressure resistant plastic
- TPH-HD Jaw is covered with special high quality extreme high pressure resistant plastic
- Maintenance-friendly clamps, plastic pressure resistant cover is pipe lifting easy to change
- TPH-HD has special handle for easy handling
- Compact design and high lifting capacity
- Lightweight design for easy handling
- Tough quality heavy duty body
TTL
Terrier Pipe Lifting Clamps
lightweight clamp for horizontal lifting of tubes, pipes and solid round materials
Application:
- For horizontal lifting and transporting of tubes, pipes, tube bundles, rolls and other solid round materials
- The clamp is locked in the open position . To perform lifting, the operator must activate the handle and hold it up while the force on the lifting eye is going upwards . When laying down the load, the clamp automatically locks itself open
- TTL jaw opening available from: 48,3 to 508 mm
- Working load limit (WLL) 500 – 3000kg
- Higher WLL or jaw openings available upon request
Features and benefits:
- Lightweight design and easy to use
- Tough quality body
- Can be delivered with protection to avoid damaging of the load
TBC / TBC-A
Terrier Pipe Lifting Clamps
lightweight clamp with pressure resistant plastic cam for vertical concrete pipe lifting
Application:
- For vertical lifting and transporting of concrete pipes and wells
- Terrier TBC / TBC-A lifting clamps must always be used in pairs (or per three clamps)
- TBC jaw opening available from: 60 to 120 mm
- TBC-A has an extra large jaw opening available from: 50 to 220 mm (adjustable in steps of 25 mm)
- Working load limit (WLL) 1000kg
- Other jaw openings available upon request
Features and benefits:
- The cam is covered with a special high quality pressure resistant plastic
- Maintenance-friendly clamp, plastic pressure resistant cover is easy to change
- Tough quality welded body
- Lightweight design for easy handling
