Terrier Non Marking Lifting Clamps
The Terrier non marking lifting clamps are equipped with two clamping jaws, which have been provided with a special plastic layer. The clamp is used for hoisting & transporting work pieces that may not be damaged while being moved. These pieces may be made from various materials, such as stainless steel, aluminium, wood or stone, but with the exclusion of course concrete. To hoist the above-mentioned materials, the non marking safety clamps may be applied singly, as a set of two, or even using three or more.

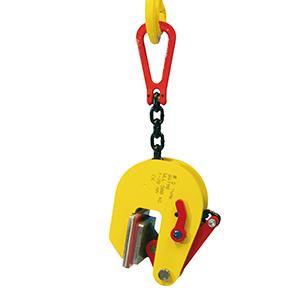

TNMK / STNMK / TNMK-A
Terrier Non Marking Lifting Clamps
Vertical lifting without marking, scratching or damaging the material surface without minimum Wll
Application:
- For vertical lifting and transporting of all plates and structures without marking, scratching and or damaging the material surface
- Perfect for lifting materials such as (stainless) steel, aluminum, nature stone, composite, painted materials, wood, glass, plastic, etc .
- Jaw openings available from: 0 to 60 mm
- STNMK types are supplied with enlarged jaw opening: 17 to 37 mm
- TNMK-A types are supplied with adjustable extra large jaw opening: 0 to 180 mm (A) (adjustable steps of 20 mm)
- Working load limit (WLL) 500 – 3000kg .
- No min . WLL
Features and benefits:
- With 2 special synthetic anti-friction pads to guarantee non-marking
- Supplied with chain lifting shackle for flexible lifting
- Always equipped with a safety mechanism, ensuring the clamp does not slip when non-marKing lifting lifting force is applied and when load is being lowered
- Clamp is locked in closed as well as open position
- Lightweight, maintenance-friendly, heavy duty body
TNMH
Terrier Non Marking Lifting Clamps
Horizontal lifting without marking, scratching or damaging the material surface
Application:
- For horizontal lifting and transporting of all non-deflecting plates and structures without marking, scratching and or damaging the material surface
- Perfect for lifting materials such as (stainless) steel, aluminum, nature stone, composite, painted materials, wood, glass, plastic, etc .
- Terrier TNMH lifting clamps must always be used in pairs (or multiple pairs)
- Jaw openings available from: 0 to 50 mm
- Working load limit (WLL) 1000 – 6000kg per pair
Features and benefits:
- Jaw and cam are covered with a special high quality pressure resistant fabric
- Compact design and high lifting capacity
- Lightweight design for easy handling
- Tough quality heavy duty welded body

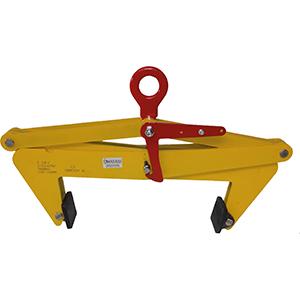

TBLC
Terrier Non Marking Lifting Clamps
Non-marking vertical lifting of materials with parallel sides without minimum Wll
Application:
- For vertical lifting and transporting of all plates, blocks and structures with parallel sides without marking, scratching and or damaging the material surface
- Perfect for lifting materials such as (stainless) steel, aluminum, nature stone, composite, painted materials, wood, glass, plastic, etc .
- The clamp is locked in the open position . To lift, the operator must activate the handle and hold it up while the lifting eye moves up . This will result in the clamp closing . When Laying down the load, the clamp automatically locks itself open
- Jaw openings available from: 30 to 500 mm
- Working load limit (WLL) 500 – 3000kg .
- No min . WLL
Features and benefits:
- 2 special synthetic anti-friction pads to guarantee non-marking
- Lightweight design and easy to use
- Tough quality heavy duty body
- Maintenance-friendly, easy to exchange parts which are available upon request
