Terrier Drum Lifting Clamps
The TVK and TVKH vertical safety lifting clamps have been specifically and exclusively designed for the vertical lifting of steel drums.
The TVK and TVKH clamps consist of a body , cam & cam pins. The cam also functions as a lifting shackle and ensures that the drum is held firmly while it is being lifted.
CLICK HERE TO SEE OUR COMPLETE LINE OF OVERHEAD LIFTING EQUIPMENT

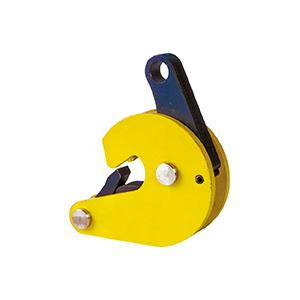

TVKH
Terrier Drum Lifting Clamps
special lightweight heavy duty clamp for upright drum lifting
Application:
- Designed for lifting, handling and transporting of (oil) drums, where the drums have to stay in a upright position
- Single clamp application on empty or filled drums
- During lifting and transportation the centre of gravity of the drum is always below the lifting point
- Jaw openings available from: 0 to 25 mm
- Working load limit (WLL) 600kg
Features and benefits:
- Lightweight design for easy handling in tight spaces between other drums
- Tough quality heavy duty welded shell body
- Equipped with a manual safety lock mechanism so that the clamp is locked in the open position
- Maintenance-friendly, easy to exchange parts which are available upon request

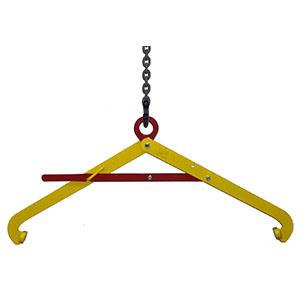

TVSH
Terrier Drum Lifting Clamps
Lightweight heavy duty clamp for laying drum lifting
Application:
- Designed for lifting, handling and transporting of (oil) drums, where the drums have to stay in a laying position
- Single clamp application on empty or filled drums
- During lifting and transportation the centre of gravity of the drum is always below the lifting point
- Jaw openings available from: 500 to 900 mm
- Working load limit (WLL) 600kg
Features and benefits:
- Lightweight design for easy handling in tight spaces between other drums
- Tough quality heavy duty welded shell body
- Equipped with a manual safety lock mechanism so that the clamp is locked in the open position
- Maintenance-friendly, easy to exchange parts which are available upon request
TVK
Terrier Drum Lifting Clamps
Special lightweight heavy duty clamp for drum lifting
Application:
- Designed for safe lifting, handling and transporting of steel (oil) drums
- Single clamp application on empty or filled sealed drums
- Filled open drums should be lifted by use of two clamps with a two leg chain sling
- Jaw opening available from: 0 to 17 mm
- Working load limit (WLL) 500kg
Features and benefits:
- With automatic locking mechanism
- Lightweight design for easy handling
- Tough quality heavy duty welded shell body
- Maintenance-friendly, easy to exchange parts which are available upon request
