SPACEMASTER^® SX WIRE ROPE HOISTS

The R & M Wire Rope Hoists Spacemaster^® SXs’ unique hoist features include new low maintenance, sealed brakes, a two-speed hoist motor, and trolley inverter control. The standard hoist nameplate will carry a CSA c/us rating as well as a NEMA 3R rating for electrical enclosures. Two-component epoxy paint is standard. Spacemaster^® SX hoists are designed to meet and exceed either ASME H3 or ASME H4 duty (FEM 1Am, 2m, or 3m) ratings and provide the ultimate in easy load handling, safe operation and lasting, trouble-free performance.

RX PROGRAM – R&M’S REPLACEMENT HOIST FOR EMERGENCY BREAKDOWN SITUATIONS.

• Equipped with standard hoist features
• 230, 460, or 575 volts – 3 phase – 60 Hz power supply

Standard electric wire rope hoist configurations include normal headroom, low headroom and double girder trolley designs. Hoists in short ton ratings (ASME) or metric ratings (FEM)  meet a wide variety of application requirements:

• 1/2 – 80 ton (500 – 80,000 kg) capacities
• Lifts starting at 13ft (4m) to 320ft (100m) and beyond
• Lifting speed range 10/1.5 to 62/10 fpm (3/0.5 – 19/3 m/min)
• 208, 230, 460, 575/3/60 or 380/3/50 power supply
• Single-reeved or double-reeved

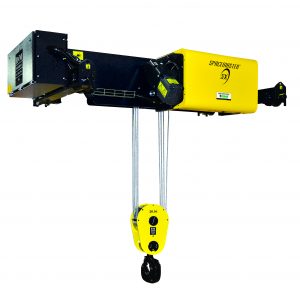

R & M Wire Rope Hoists – Double Girder Trolley
Superior clearance and headroom for double girder crane applications

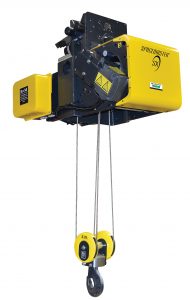

R & M Wire Rope Hoists – Normal Headroom Trolley
An ideal selection for monorails and jib crane applications. Hardened wheels for patented track applications are also available. (Shown with optional second holding brake)

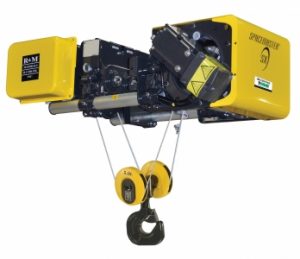

R & M Wire Rope Hoists – Low Headroom Trolley
The best solution for single girder cranes; its compact design provides maximum space-efficiency.

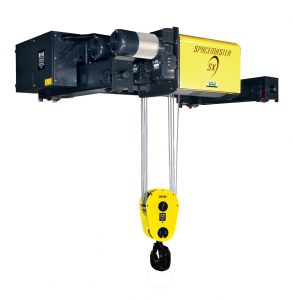

High Capacity

Standard offering Includes:

SX6 single and double reeved models rated up to:
20 Ton – ASME H4 (20,000 kg – FEM 3m)
30 Ton – ASME H4 (32,000 kg – FEM 2m)
40 Ton – ASME H3 (40,000 kg – FEM 1Am)

SX7 double reeved models rated up to:
40 Ton – ASME H4 (40,000 kg – FEM 3m)
60 Ton – ASME H4 (63,000 kg – FEM 2m)
80 Ton – ASME H3 (80,000 kg – FEM 1Am)

Special Applications

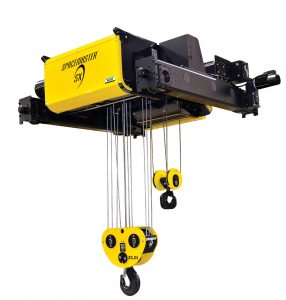

• Main hoist / auxiliary hoist on a common trolley
• Double girder under running trolley
• Motorized Bottom Block
• Specialized controls
• Double girder hoist rotated 90º
• Outdoor use / dusty environment
• High altitude
• Special trolley rail gauges
• Low connection double girder trolleys for tight rail to ceiling applications
