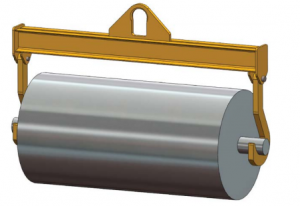

HRLB ROLL LIFTING BEAM
FEATURES
- This style of lifting beam is designed to easily lift and position rolls by the mandrel/shaft (when it is through the center of the roll) with plate or bent bar J-hooks.
- It can be utilized where headroom is limited and comes with a pair of fixed or pivoting J-hooks.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL roll lifters are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Manual or motorized beam rotation
- Adjustable spread
- Higher capacities
- Additional lengths
- Low headroom bail
- Dual bail designed for two hoists
- Spreader beam design with top rigging
- Additional hooks
- Hook linings (bronze/brass, urethane, brake lining)
- Beam stand
Third Column

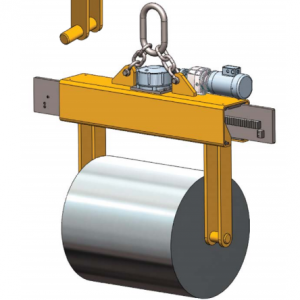

HMRL MOTORIZED ROLL LIFTER
FEATURES
- This style of lifter is designed to easily lift and position rolls by placing the lifting pins securely through the I.D. of the roll.
- Designed to meet your specific roll lifting requirements.
- Utilizes a sling style bail that adds stability and provides for ease of maintenance on the gearbox and shaft assembly.
- Can be utilized for a variety of roll widths where aisle clearance is limited.
- Manual chain wheel operation is available.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL roll lifters are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Parking and/or maintenance stands available
HRGT ROLL GRIPPING TONGS
FEATURES
- This style of lifter is designed to easily lift and position rolls by gripping the outer diameter of the roll.
- Designed to meet your specific roll lifting requirements.
- Can be utilized for a variety of roll widths where aisle clearance is limited.
- Auto-latching mechanism supplied for easy one-person operation.
- Protective linings are available to minimize roll damage.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL roll gripping Tongs are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Parking and/or maintenance stands available
HRLCH ROLL LIFTING C-HOOK
FEATURES
- This style of lifter is designed to easily lift and position rolls by placing the lifting arm securely through the I.D. of the roll.
- Supplied standard with lifter guide handle.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL roll lifters are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Higher capacities
- Additional lengths
- Larger throat opening
- Protective padding
- Parking stands
