Thank you for visiting our Harrington Air Chain Hoists page. We are an authorized Harrington repair service center. We also offer hoist inspection services, contact us for more details.
CLICK HERE TO SEE MORE HARRINGTON HOISTS

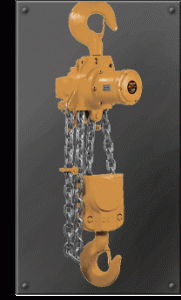

| Harrington Air Chain Hoists TCR large capacity air chain hoists are market tested and proven to be durable and easily repairable. These high-performance hoists have all of the power required for lifting very heavy material and are the ideal choice for extreme applications including in mines, shipyards, heavy construction, rigging situations and the petrochemical industry. |
- Capacities 10 and 25 Ton
- Vane motor design allows for fine feathering control
- Unlimited duty cycle for severe applications
- Adjustable load limiter stops lift when load is over rated capacity
- Enclosed heavy-duty disc brake provides reliable braking action
Harrington Air Chain Hoists TCS CHEETAH air chain hoist is available in 1/4, 1/2 and 1 Ton capacities with either pendant or cord control. This hoist has extremely fast and uniquely adjustable lifting and lowering speeds. The TCS is lightweight, compact and has outstanding feathering ability making it a perfect fit for fast-paced assembly line and workstation crane applications.
- Very fine feathering control allows precise load positioning
- Spring-loaded vane motor and pilot air control allow extremely fine feathering ability
- Unlimited duty cycle for severe applications
- Adjustable lifting and lowering speeds increase production capabilities
- Enclosed heavy-duty disc brake provides reliable braking action
Harrington Air Chain Hoists AH Mini Cat air chain hoists offer an extremely lightweight, small body design suitable for on-site jobs, workstations and assembly line applications. Available in pendant, cord and manipulator control and all models can easily lug mount to our ET mini trolley for added mobility. This hoist weighs only 12 lbs. with 10 foot of lift but don’t be fooled by its small size – the Mini Cat is no lightweight in performance, only in dimensions.
- Capacities 250 lb. and 500 lb.
- Very fine feathering ability for complete load control
- Unlimited duty cycle to handle every production need
- High speed lifting increases production capabilities
- Low noise levels for operator comfort
| Harrington Air Chain Hoists TCR air chain hoists are designed with a heavy-duty standard body and are able to lift heavy loads in the most demanding or harsh environments. Available in cord control which allows operator to remain within reach of the load and pendant control that provides easier inching or feathering and permits operation from a remote location. Travel capability is available by coupling these models with our MCR air trolleys and PT and GT manual trolleys. |
- Capacities ¼ Ton through 6 Ton.
- Very fine feathering control for variable speed and precise load positioning
- Spring-loaded vane motor and pilot air control provide extremely fine feathering ability
- Unlimited duty cycle for severe applications
- Adjustable load limiter stops lift when load is over rated capacity
- Enclosed heavy-duty disc brake provides reliable braking action

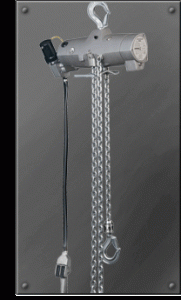

| Harrington Air Chain Hoists AL Series hoists are Ex certified spark resistant (Explosive atmospheres that require features that reduce the risk of spark) to level Ex II 2GD c T5 IIB T100°C and are in compliance with the EU ATEX Directive. These hoists are suitable for applications where a clean environment is a necessity and can operate completely dry leaving no lubrication in the exhaust air which is perfect for use in food, chemical and pharmaceutical industries. AL Series hoists can also operate with oil for longer vane life. Contact customer service for trolley information. |
- Capacities ¼ through 5 Ton
- Pendant, cord or twist rod control
- Heavy-duty disc brake
- Reliable vane motor
- Zinc-plated, blue-chromated load chain
- Planetary gearing system
| Harrington Air Chain Hoists AW Series hoists are intended for use in humid, limited corrosive or outdoor environments where equipment must be washed or hosed off frequently. These hoists are Ex certified spark resistant (Explosive atmospheres that require features that reduce the risk of spark) to level Ex II 2GD c T5 IIB T100°C and are in compliance with the EU ATEX Directive. |
- Capacities ½ through 1 Ton
- Pendant, cord or twist rod control
- Unpainted aluminum body
- Stainless steel and electro-plated external components
- Gear box and chain lubricants comply with FDA standards
| Harrington Air Chain Hoists AS Series air hoists are Ex certified spark resistant (*Explosive atmospheres that require features that reduce the risk of spark) to level Ex II 2GD c T5 IIC T100°C and are in compliance with the EU ATEX Directive. These hoists are the solution for many hazardous conditions. Contact a qualified person to determine ATEX requirements for specific applications. |
- Stainless steel load chain
- Stainless steel top and bottom hooks
- Stainless steel hook latches
- Stainless steel hardware
- Heavy-duty disc brake
- Reliable vane motor
