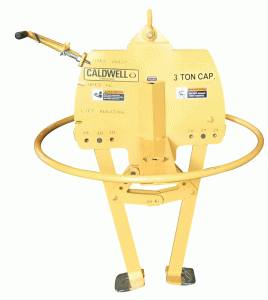

NEW – Ergonomic Vertical Eye Caldwell Coil Lifters

Product Features and Benefits:

• Efficient handling of vertically stacked coils.
• Handles coils with ID’s of 16”, 20”, and 24”.
• Ergonomic handles and guide.
• Horizontal handle with pin lever is easy to actuate.
• Spring loaded lever can be set for right- or left-handed operation.
• Unique 360º guide handle is easily accessed from any location.
• Optimized foot accommodates 5/8” blocking.
• Complies with ASME standards.

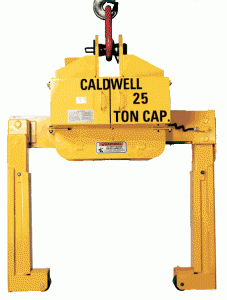

Motorized Grab – Fixed Bail

PRODUCT FEATURES:

• Motorized leg drive maximizes the efficient handling of coils.
• Leg drive speed – 2.8” per second.
• Narrow aisle stacking maximizes coil storage floor space.
• Curved lifting pads for coil protection.
• High impact plastic toe rollers prevent lifter foot contact.
• Anti-clamp limit switch protects coil during closing of lifter.
• Heavy duty torque limiting drive protection during maximum
  open/closed conditions.
• Lockout limit switch prevents inadvertent leg opening during lift.
• Alloy steel pin bail.
• Easily replaceable slide wear guides.
• Design allows for easy maintenance access to drive components.
• Designed to operate on AC power supply.
• Field upgradeable to rotating style.
• Complies with ASME standards.

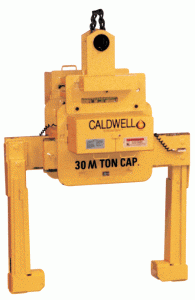

Motorized Grab – Rotating Bail

PRODUCT FEATURES:

• Motorized leg drive maximizes the efficient handling of coils.
• Leg drive speed – 2.8” per second.
• Narrow aisle stacking maximizes coil storage floor space.
• Curved lifting pads for coil protection.
• High impact plastic toe rollers prevent lifter foot contact.
• Anti-clamp limit switch protects coil during closing of lifter.
• Heavy duty torque limiting drive protection during maximum
  open/closed conditions.
• Lockout limit switch prevents inadvertent leg opening during lift.
• Alloy steel pin bail.
• Easily replaceable slide wear guides.
• Design allows for easy maintenance access to drive components.
• Designed to operate on AC power supply.
• Motorized 350° rotation at approximately 2 RPM.
• Complies with ASME standards.

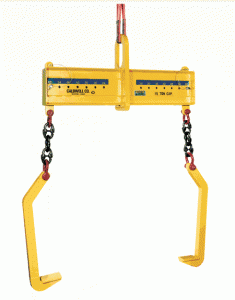

Double Leg Caldwell Coil Lifters

PRODUCT FEATURES:

• Most economical of the two-sided coil lifters.
• Two-sided coil lifter requires less aisle space.
• Lifting hook width adjustment pin is easy to use.
• Hooks manufactured from high tensile alloy steel.
• Coil width adjustment indicators for easy
  hook placement.
• Optional coil protection available.
• Complies with ASME standards.

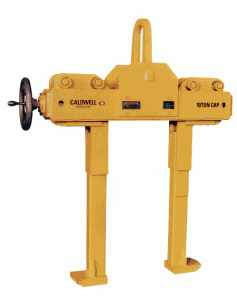

Telescopic Caldwell Coil Lifters

PRODUCT FEATURES:

• Chain wheel provides easy manual operation.
• Two-sided coil lifter requires less aisle space.
• Curved lifting pad minimizes coil damage.
• Self locking worm gear prevents legs from
  inadvertent opening.
• Available with hand wheel leg
  drive option.
• Available with motorized leg
  drive option.
• Complies with ASME standards.

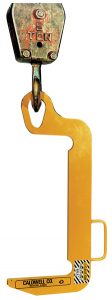

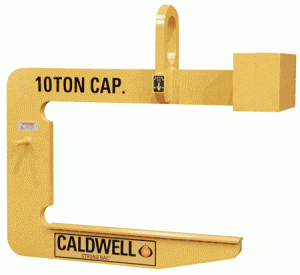

Heavy Duty C-Hook

PRODUCT FEATURES:

• Designed for heavy duty applications.
• High tensile alloy steel plate reduces physical size and weight.
• Counter balanced to hang level when empty.
• Inside radius on hooks avoid coil edge contact.
• Curved coil saddle is standard.
• Guide handles for ease of hook positioning.
• Handles a wide range of coil widths.
• Available with optional padding for additional coil protection.
• Complies with ASME standards.

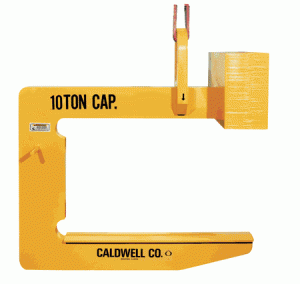

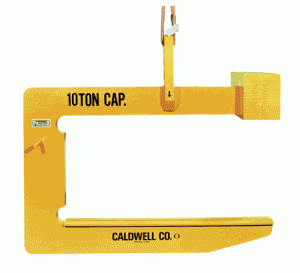

Close Stacking C-Hook

PRODUCT FEATURES:

• Recessed counterweight allows for close stacking of coils which
  maximizes floor space.
• Handles a wide range of coil widths.
• Designed for heavy duty application.
• High tensile alloy steel plate reduces physical size and weight.
• Counter balanced to hang level when empty.
• Inside radius on hooks avoid coil edge contact.
• Curved coil saddle is standard.
• Guide handle for ease of hook positioning.
• Available with optional padding for additional coil protection.
• Complies with ASME standards

Slit Coil C-Hook

PRODUCT FEATURES:

• Designed for heavy duty applications.
• Handles multiple slit coils which maximizes handling efficiency.
• Recessed counterweight minimizes interference with equipment or
  other obstacles.
• High tensile alloy steel plate reduces physical size and weight.
• Counter balanced to hang level when empty.
• Inside radius on hooks avoid coil edge contact.
• Curved coil saddle is standard.
• Guide handles for ease of hook positioning.
• Available with optional padding for additional coil protection.
• Complies with ASME standards.

Narrow Coil C-Hook

PRODUCT FEATURES:

• Handles narrow coils with less coil edge damage.
• More durable than web slings.
• Lightweight for easier handling.
• Built in guide handle for ease of coil positioning.
• Available with optional curved coil saddle.
• Inside radius on hooks avoid coil edge contact.
• Complies with ASME standards.

Pivoting Coil Hook

PRODUCT FEATURES:

• Easy horizontal to vertical upending of coils.
• Pivoting wedge for easy tilting of stacked coils.
• Wedge acts as retainer.
• Efficient and easy to use.
• Popular for use with small, lightweight coils.
• For use where overhead clearance is limited.
• Specially designed heat treated pivoting wedge.
• Complies with ASME standards.

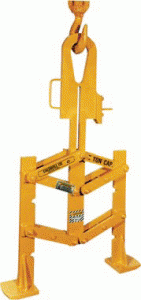

Ext. Width Vertical Caldwell Coil Lifters

PRODUCT FEATURES:

• Handles any size coil I.D. from 16″ to 24″.
• Lifter legs automatically adjust to coil I.D.
  being lifted.
• Has higher capacity range than standard lifter.
• Unique design minimizes dunnage required
  between coils.
• Complies with ASME standards

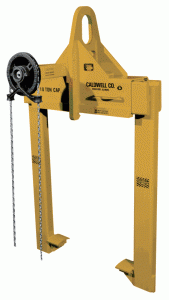

Vertical “Eye” Coil Grab

PRODUCT FEATURES:

• Handles any size coil I.D. from 16″ to 24″.
• Efficient handling of vertically stacked coils.
• Available with chain wheel drive.
• Complies with ASME standards.

PRODUCT FEATURES:

• Fast and convenient way to upend coils to 90°.
• Heavy duty disc brake will stop load in any position.
• Reversing magnetic starter with 115 volt pendant control.
• Stop travel/over travel limit switches.

PRODUCT OPTIONS:

• Larger platforms available.
• V-Block, either standard or urethane faced.
• 180° horizontal rotation which permits loading, and unloading
  from same side.
• Fork lift truck pick-up pockets.

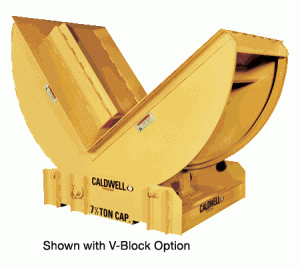

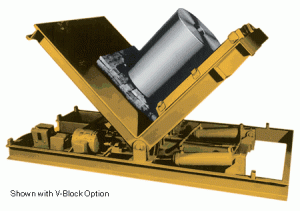

Low Platform Coil Upender

PRODUCT FEATURES:

• Lower platform design offers easier access by operator.
• Fast and convenient way to upend coils to 90°.
• Requires less platform height.
• Magnetic starter with 115 volt pendant control.
• Double acting hydraulic cylinders.
• Relief valve prevents over-capacity rotation.
• Stop limit switches at each end of rotation.

PRODUCT OPTIONS:

• Larger platforms available.
• Unequal platform sizes available.
• V-Block, either standard or urethane faced.
• 180° horizontal rotation, which permits loading and unloading
  from same side.
