Gym Divider Curtains

We offer many models, styles and colors of gym divider curtains to choose from. – set up an on-site consultation today

CLICK HERE TO SEE OUR COMPLETE LINE OF SPORTS & ATHLETIC EQUIPMENT


Colors available:

vinyl: Marine Blue, Royal Blue,Yellow, Kelly Green, Orange, Navy Blue, Forest Green, Purple, Red, Burgundy,White, Beige, Black, or Grey.

mesh: White, Yellow, Green, Red,Blue, Black, or Grey.


walk draw curtain

Walk-Draw Gym Divider Curtains is a convenient track-style curtain that offers an economical answer to your space dividing needs. Manually operated and easy to install • Features a 1-7/16” wide enclosed galvanized steel track. Carriers spaced no more than 12” apart with 1” diameter polyurethane wheels. Can be stored flat against a wall or in small corners of a facility.


fold up gym curtain

Fold-Up Gym Divider Curtains is the most cost effective curtain solution on the market. The fold up curtain offers a great solution for dividing your space and provides years of worry free service. Features easy installation and 1 HP electric operation via standard key switch, or optional key pad or wireless remote. Independent cast aluminum drums are easily adjustable. Features 19 oz. or 22 oz. vinyl lower section and 9 oz. vinyl coated mesh upper section with welded seams and fully padded batten with no exposed hardware. 2 3/8” diameter center line continuous drive shaft for even curtain balance and load distribution. Straight or curve design available. Curtain lock safety device locks drive shaft if speed exceeds 1-1/2” per second.

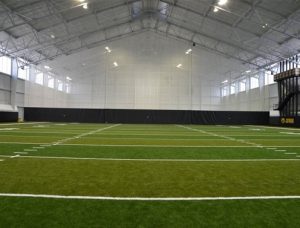

peak fold gym curtain

Peak-Fold Gym Divider Curtains is precisely designed to fold to exact ceiling contour of nearly any ceiling slope. When sloped ceilings require creative use of space, the peak-fold curtain is the best solution. Equipped with 1/8” cables, spaced not more than 10’ apart, ending in individual hoist drums. Custom engineered variable diameter cable drums match individual cable travel to the ceiling slope. Hoist driven by 1 HP, 115 V AC gear motor with overload thermal protection, single-keyed toggle key switch. No exposed hardware.


radius fold up gym curtain field house

Radius Fold-Up Gym Divider Curtains offer a great solution for dividing court space from any outer space such as a running track with a radius. Unique design utilizing double universal joints allows the curtain to follow the exact radius of the track. Features easy installation and 1 HP electric operation via standard key switch, or optional key pad or wireless remote. Independent cast aluminum drums are easily adjustable. Features 19 oz. or 22 oz. vinyl lower section and 9 oz. vinyl coated mesh upper section with welded seams and fully padded batten with no exposed hardware. 2 3/8” diameter center line continuous drive shaft for even curtain balance and load distribution. Straight or curve design available. Curtain lock safety device locks drive shaft if speed exceeds 1-1/2” per second.

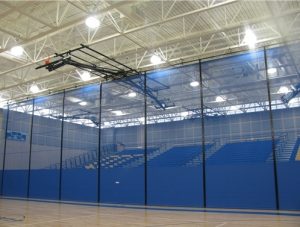

roll-up gym curtain

Roll-Up Gym Divider Curtains feature the automatic operation of a fold-up curtain without the cables• Curtain rolls on the 3 1/2” diameter bottom batten for a smooth wrinkle free surface when rolled and stored. Curtain is driven with 4” wide black polyester webbing. Compact 24” clearance in stored position. Curtain lock safety device locks drive shaft if speed exceeds 1-1/2” per second.


top roll gym curtain divider

top roll gym curtain divider

Top Roll Gym Divider Curtains provide a solution for those facilities with height clearance issues. This low profile curtain is designed to operate without belts, cables, exposed wires or guide systems. Fabric rolls within 13.5” of ceiling overhead for maximum clearance. Innovative and extremely quiet internal tubular motor with all electrical components are neatly packaged inside the drive tube. Newly designed expandable roller system. Larger drive tube with vented ends for cooling off the motors. 19 oz. or 22 oz. vinyl lower section and 9 oz. vinyl coated mesh upper section. Curtain has welded seams, fully padded bottom batten, no exposed hardware. Mounting assemblies allow for easy installation and leveling• Internal motor system has a clean look with no wires or cables exposed. Internal drive shaft motors enable lower power requirement and lower torque to move with similar speed as standard external motors. Standard motors pull 15 amps, ours only 3.5 amps. Internal motors allow for larger variation of building configurations with space constraints. Designed carrier system has an increased diameter aluminum drive pipe for speeding up the roll time and prolonging the vinyl life. New ball bearing roller assembly designed with longer rollers to distribute the vinyl load, reducing stress on the material. Hardened steel rollers eliminate dirt buildup and tracking marks on vinyl that wood or rubber rollers create. 13.5” compact profile for height clearance issues.

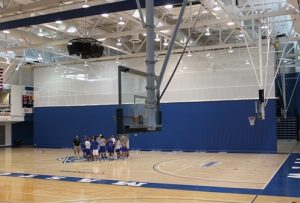

center drive gym curtain

Center Drive Gym Divider Curtains offer the same great features as our Top Roll Curtain such as maximum clearance when in the stored position, operation without belts, cables, or exposed wires and guide systems, but goes a step further by eliminating the need for large rollers which require extensive overhead structure attachment. Our Center Drive Curtain is a unique design that uses internal tubular motors and a counterweight that eliminates the need for costly extension arms with straps connected at the upper structure to resist the torque of the motor. Utilizes a larger drive tube raising and lowering the curtain 25% faster than the competition. Lower half of the curtain material can be either 19 or 22 oz polyester reinforced vinyl, which is fire retardant and mildew resistant. Seams are electronically welded with a full contact weld. A padded pocket is formed in bottom edge of curtain to accommodate a 1.9” O.D bottom batten while a similar pocket of vinyl or mesh houses the top batten of the same size. Upper half of curtain shall be 9 oz vinyl coated polyester mesh. Drive structure: Depending on the curtain size, it is operated by one or two internal tubular motors (120 volt, 60 hertz, single phase). Each motor has a max torque of 700 inch pounds with a speed of 14 rpm • Each motor is equipped with integral up and down limit switches with locking push buttons and electromagnetic disk brakes for smooth and accurate stop without slippage and allows full braking power in the event of power failure. Drive tube is 4” O.D and is affixed in center of curtain allowing for increased speed of operation. Internal motor system has a clean look with no wires or cables exposed. Internal driveshaft motors enable lower power requirement and lower torque to move with similar speed as standard external motors. Standard motors pull 15 amps, ours only 3.5 amps. Internal motors allow for larger variation of building configurations with space constraints. Our torque counter weight feature is new technology which does not require any connection to the structure to resist the torque of the motors providing a much cleaner and less complicated installation than the competition. Once positioned in the drive tube and attached to the motor, no belts, structure attachments, or further adjustment are required.
