Gorbel Cranes

Gorbel cranes, an innovator and leader in the enclosed track work station crane industry, Gorbel has over 30 years experience providing overhead handling solutions from 50 lbs to 40 ton to customers in a wide range of industries.

Gorbel cranes dealer

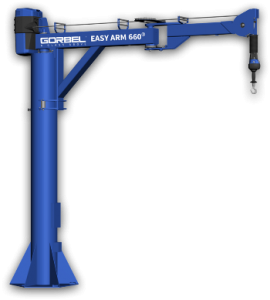

Gorbel Easy Arm Intelligent Assist Free Standing Arm

easyarm660_rendering

  • Capacities: 165, 330, 660
  • Spans from 6′ to 14′
  • Height under hook of 6′-11′
  • Speeds up to 180 ft. per minute
  • 660 – Lifting speeds up to 45 ft. per minute in high production environments
  • Cost effective turnkey solution
  • No special foundation required on 165 and 330
  • 660 – Easy, foundationless installation up to 9′ 6″
  • Two pivot points make it easy to reach around obstacle or into machines
  • Gorbel cranes Easy Arm offer unmatched precision
  • Float mode for exact positioning

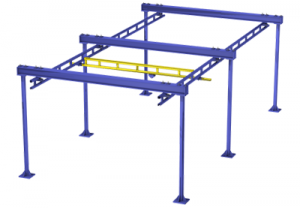

Gorbel Enclosed Track Free Standing Work Station Bridge Crane

Gorbel enclosed track free standing bridge crane

  • Capacities from 150 to 4000 lbs
  • Rectangular Coverage with up to 34’ bridge and 124’ runway standard
  • Standard support distances of 20, 25, and 30 feet.
  • Easy to move and position loads
  • Modular design for greater flexibility
  • Doesn’t require existing support structure
  • Enclosed track / easy movement and long life
  • Rigid runways / superior load positioning – no movement or “crabwalking” of the bridge
  • Ease of Installation / install on any standard 6″ concrete floor
  • Gorbel cranes offer smooth rolling surface / Easier movement of bridge and trolleys
  • Multiple track profiles and spanning capabilities/Adaptable, flexible, and cost competitive

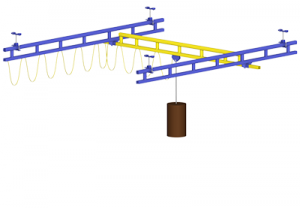

Gorbel Enclosed Track Ceiling Mounted Work Station Bridge Crane

Gorbel enclosed track ceiling mounted bridge crane

With Ceiling Mounted Systems from Gorbel cranes, supporting steel does not interfere with the handling operation. Ceiling Mounted Systems require a building with an adequate overhead structure to hang the crane.

  • Capacities from 150 to 4000 lbs
  • Rectangular Coverage with up to 34’ bridge and 124’ runway standard
  • Standard support distances of 20, 25, and 30 feet.

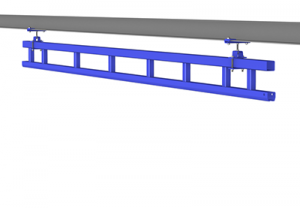

Gorbel Enclosed Track Monorail

Gorbel enclosed track monorails

  • Capacities from 150 to 4000 lbs
  • Linear movement
  • Modular designs provide ultimate flexibility
  • Can be integrated into a total system with extra track, curves, interlocks and switches
  • Steel or Aluminum track
  • Free Standing options available
  • Enclosed track / easy movement and long life
  • Ease of Installation

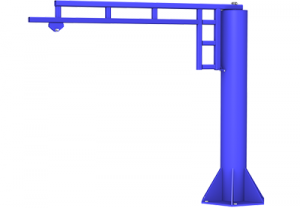

Gorbel Enclosed Track Free Standing Work Station Jib Crane

Gorbel Free standing work station jib crane

  • Capacity up to 1,000 lbs.
  • Coverage:  circular, Standard spans to 16′
  • 360 degree rotation
  • Designed to support tool balancers, air balancers, vacuum lifters, and hoists
  • Most can be bolted directly to existing floors without adding special foundations
  • A retaining pin through the pivot pin helps resist accidental upward dislodgement of the boom assembly

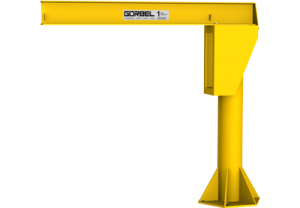

Gorbel I-Beam Free Standing Jib Crane

Gorbel I beam free standing jib crane

  • Capacity up to 10,000 lbs.
  • Coverage:  circular, Standard spans to 20′
  • 360 degree rotation
  • 3 Mounting styles; base plate mounted, sleeve mounted, insert sleeve mounted
  • Independent head assembly installs separately for ease of installation
  • Full supporting triangular base plate gussets are used instead of struts to minimize crane deflection and make positioning loads easier

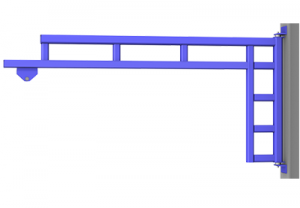

Gorbel Enclosed Track Wall Mounted Work Station Jib Crane

Gorbel Wall mounted work station enclosed track jib crane

  • Capacity up to 1,000 lbs.
  • Coverage:  circular, Standard spans to 16′
  • 200 degree rotation
  • Can be mounted to a wall or column
  • These Gorbel cranes are available in steel (all capacities) or stainless steel (capacities to 500 lbs.)
  • Uses enclosed track for the boom assembly, which reduces dead weight for easier rotation than traditional I-Beam Jib Cranes

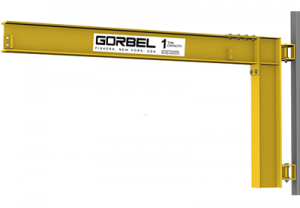

Gorbel I-Beam Wall Cantilever Jib Crane

wc_large

  • Capacity up to 10,000 lbs.
  • Coverage: circular, Standard spans to 20′
  • 200 degree rotation
  • Requires a structurally adequate wall or column to mount to
  • Welded or bolted connection depending on bracket centers
  • These Gorbel cranes requires very little headroom, so it can be installed very close to the underside of ceilings to provide maximum lift for your hoist

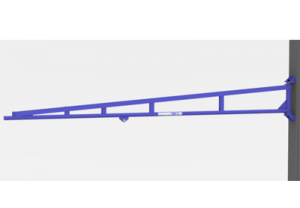

Gorbel Enclose Track Wall Mounted Tool Solution Jib Crane

Gorbel Wall mounted tool solution enclosed track jibs

  • Capacities of 50 lbs. and 150 lbs.
  • Coverage:  circular 50 lb.  Standard spans from 4′ to 10′
  • 150 lb. Standard spans from 4′ to 12′
  • 50 lb, 180 degree rotation; 150 lb, 200 degree rotation
  • Designed to be smaller, lighter and more cost effective for applications with suspended tools

50 lb.:
• Cost effective to better fit your budget
• Light weight for easy movement
• Small bracket centers allow for reduced headroom requirements
150 lb.:
• No foundation required
• An adjustable friction brake limits over swing during highly repetitive cycles
• Tapered roller bearings for easy operation, installation, and maintenance
• Small bracket centers allow for reduced headroom requirements

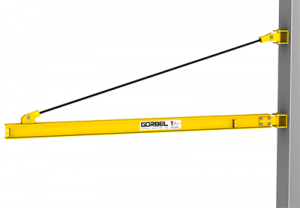

Gorbel I-Beam Wall Cantilever Jib Crane

Gorbel I-beam wall bracket jib crane

  • Capacity up to 10,000 lbs.
  • Coverage: circular, Standard spans to 30′
  • 200 degree rotation
  • Ideal for swinging around obstacles or under obstructions
  • Most economical means of providing hoist coverage for individual use in bays, along walls or columns of plants
  • Single tie rod, right hand threaded at both ends for easy boom adjustment and installation

Gorbel I-Beam Wall Cantilever Jib Crane

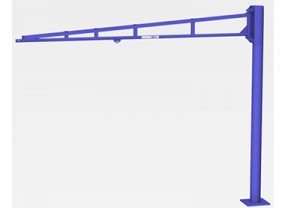

Gorbel free standing tool solution jibs

  • Capacities of 50 lbs. and 150 lbs.
  • Coverage:  circular 50 lb.  Standard spans from 4′ to 10′
  • 150 lb. Standard spans from 4′ to 12′
  • Standard heights from 8′ to 10′
  • 50 lb, 180 degree rotation; 150 lb, 200 degree rotation
  • Designed to be smaller, lighter and more cost effective for applications with suspended tools

50 lb.:
• No foundation required
• Simple 4 bolt installation allows for easy adjustment of the height under boom
• Small bracket centers allow for reduced headroom requirements
150 lb.:
• No foundation required
• An adjustable friction brake limits over swing during highly repetitive cycles
• Tapered roller bearings for easy operation, installation, and maintenance
• Small bracket centers allow for reduced headroom requirements

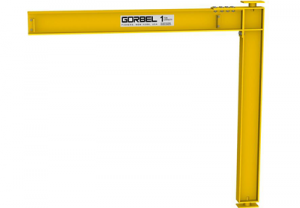

Gorbel I-Beam Mast Type Jib Crane

Gorbel I-beam mast type jib cranes

  • Capacity up to 10,000 lbs.
  • Coverage: circular, Standard spans to 20′
  • MT400 Full Cantilever – Provides maximum amount of lift where full use of available headroom is desired
  • MT450 Drop Cantilever – Jib boom can be placed at a specific height to clear overhead obstructions
  • 360 degree rotation
  • No special foundation required making it the most economical of the Gorbel cranes 360 degree rotation jibs
  • Full Cantilever option provides maximum amount of lift where full use of available headroom is desired
  • Drop Cantilever option allows for specific placement of the boom to clear overhead obstructions

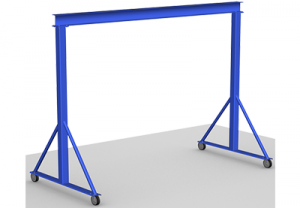

Gorbel Fixed Height Gantry Crane

Gorbel Fixed gantry

  • Capacities from 1 ton – 5 ton
  • Spans from 8ft. – 30ft.
  • Heights from 10ft. – 20ft.
  • Easily moved to any location in a facility
  • Cost effective for areas with infrequent lifts
  • Square tubing uprights, knee braces, and channel base provide for stable lifting and movement
  • Bolted beam to upright connection ensures safety
  • Molded phenolic casters are standard and provide for easy movement
  • Phenolic wheel
