DBI SALA Confined Space Entry-Rescue

DBI SALA CAPITAL SAFETY dealer

confined space entry rescue

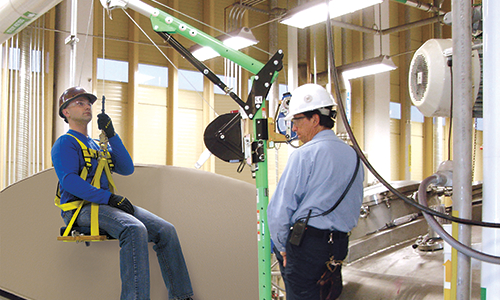

In confined space entry and confined space rescue situations, your safety equipment must operate quickly and flawlessly. That’s why Capital Safety developed an extensive line of high quality, rugged rescue and retrieval systems that meet a variety of confined space safety needs, plus offers customized solutions.

Capital Safety’s confined space safety systems have delivered decades of trusted service and meet applicable industry standards, so it’s no surprise that our confined space equipment is the first choice of safety engineers and site directors.

Confined spaces vary in size, shape and location and there isn’t a standard or typical application. A confined space safety system can usually be divided into either a “vertical” entry type system or “horizontal” type.

If entering confined spaces such as a manhole on a street, vertical confined space rescue equipment is needed. Some confined spaces require entry from the side, such as a tank, and for these you’ll need a side-entry or horizontal type confined space safety equipment.

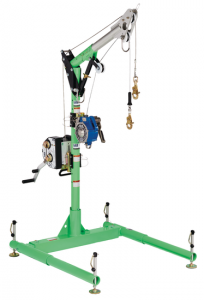

DBI SALA advanced Davit Hoist System

Advanced™ 5-Piece Davit Hoist System

  • 5-piece davit hoist system
  • Integrated 5,000 lb.  mast anchorage point
  • Fall arrest rated in all davit offset mast positions
  • Adjustable offset upper davit mast (model 8518001)
  • Telescoping reach of 11-1/2 in. to 27-1/2 in.
  • Adjustable vertical height of 33 in. to 43 in.
  • Built-in primary and secondary pulleys
  • Quick mount winch/SRL bracket
  • Detent and knob style adjustment
  • 33 in. (83.8 cm) lower davit mast extension (model 8518002)
  • Combine up to 2 extensions
  • Extends your davit mast height
  • 3-piece adjustable portable base (model 8518005)
  • Base width adjusts from 37 in. to 64 in.
  • Unique foot level and height adjustment system
  • Lightweight, corrosion resistant aluminum construction

Advanced Tripod Salalift II Winch

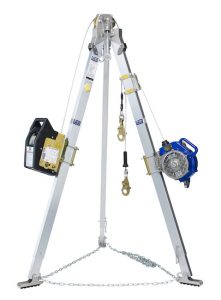

Advanced™ Tripod, Salalift™ II Winch and Sealed-Blok™ 3-Way SRL

Model: 8301041
7 ft. (2.1 m) aluminum tripod, 60 ft. (18 m) Salalift™ II winch and 50 ft. (15m) Sealed-Blok™ 3-way SRL with galvanized cable, mounting brackets, carrying bags and leg mount pulley



  • 7 ft. (2.1 m) aluminum tripod (model 8000000)
  • Telescoping adjustable locking legs
  • Built-in pulley system
  • Specialized safety shoes and leg support chain
  • Manually operated winch (model 8102001)
  • 60 ft. (18 m) of 1/4 in. (6.3 mm) galvanized steel wire rope
  • 6:1 gear ratio mechanical advantage
  • Free-wheel mode
  • Environmentally sealed self retracting lifeline (model 3400923)
  • 3-way emergency retrieval system
  • 50 ft. (15m) 3/16″ (5mm) galvanized steel cable lifeline
  • Leg mount pulley system for secondary mechanical device (model 8003238)
  • Quick connect winch and SRL mounting brackets (model 8005048)
  • Equipped with i-Safe™

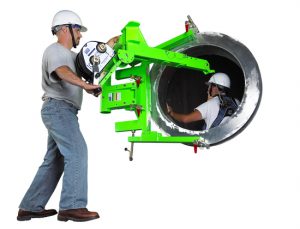

side entry tank mount

Advanced™ Side Entry Tank Mount System

  • Side entry system for tanks
  • Multiple pivot point arm assembly
  • Rotating and adjustable mechanical device base
  • Extendable arm up to 6 ft.
  • Adjustable height range of 3.2 ft. to 4.4 ft.
  • Built-in pulley for lifeline
  • Quick mount winch bracket
  • Adjustable external tank collar
  • Set-up and dismantle with standard tools
  • Lightweight, corrosion resistant aluminum construction
  • Order mechanical winch/SRL device(s) separately

220th_sm_jWJ4kaPHYH

Advanced™ Tank Pod System

  • Tank pod system for tank manways
  • Fits bolt circle diameter 19 in. to 36 in. (48.2 to 91.4 cm)
  • Attaches to studs from 1/2 in. to 3/4 in. (1.2 to 1.9 cm)
  • Three independently adjustable legs
  • Extremely compact requiring only 25 in. (63.5 cm) of clearance
  • Built-in pulley for lifeline
  • Quick mount winch bracket
  • Built-in secondary fall arrest anchor point
  • Set-up and dismantle with standard tools
  • Durable and corrosion resistant construction
  • Order mechanical winch/SRL device(s) separately

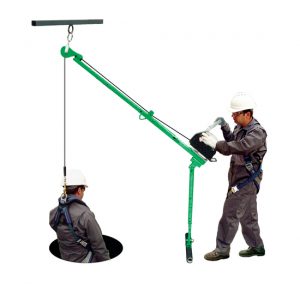

pole hoist system

Advanced™ Pole Hoist System

  • Extendable pole hoist system
  • Built-in pulley for lifeline
  • Swivel head rotates 360 degrees
  • Quick mount winch bracket
  • Adjustable stabilizer T-bar
  • Detent style adjustment
  • Set-up and dismantle without tools
  • Durable and corrosion resistant construction
  • Order mechanical winch/SRL device(s) separately

md_0nti724mPwRc

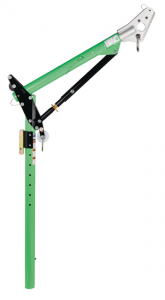

Advanced™ One-Piece Adjustable Offset Davit Mast

  • One-piece adjustable offset davit mast
  • Integrated 5,000 lb.  mast anchorage point
  • Fall arrest rated in all davit offset mast positions
  • Built-in primary and secondary pulleys
  • Integral secondary fall arrest anchorage point
  • Quick mount winch/SRL bracket
  • Configure with front and/or back mounted winch/SRL
  • Detent and knob style adjustment
  • Lightweight, corrosion resistant aluminum construction
  • Use with Advanced™ portable and permanent bases
  • Telescoping reach of 23-1/2 in. to 42-1/2 in.
  • Adjustable vertical height of 69.5 in. to 87.5 in.

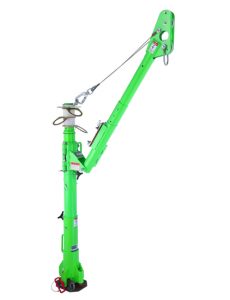

md_50MMKRmqk4

Advanced™ Davit Arm for Portable Fall Arrest Post

  • Davit arm for portable fall arrest post
  • Adjustable offset upper davit mast (model 8518001)
  • Built-in primary and secondary pulleys
  • Quick mount winch/SRL bracket
  • Detent and knob style adjustment
  • Built-in secondary fall arrest anchor point
  • Includes cable stabilizer strap
  • Lightweight, corrosion resistant aluminum construction
  • Order 8516691 fall arrest post and winch/SRL separately

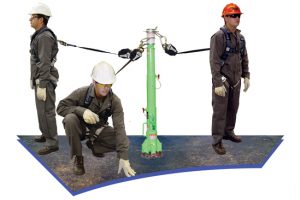

portable fall arrest post

Advanced™ Portable Fall Arrest Post

Model: 8516691
Portable, telescoping fall arrest post with three independent 360 degree swiveling anchor points.
  • Portable fall arrest post
  • 360 degrees of protection for 3 workers
  • Telescoping design
  • Built-in leveling system
  • Anchor ring for horizontal lifeline system
  • Integral carrying handle
  • Lightweight, corrosion resistant aluminum construction
  • Order base, lanyard or SRL separately

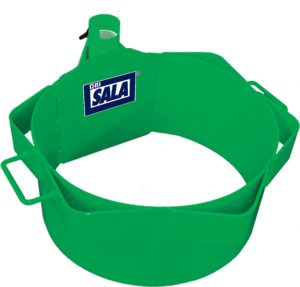

Advanced Manhole Collar Davit Base

Advanced™ Manhole Collar Davit Base

  • Manhole collar davit base
  • Built-in carrying handles
  • PVC davit mast sleeve liner
  • Set-up and dismantle without tools
  • Lightweight, corrosion resistant aluminum construction

220th_sm_E3zSSNukc1

Bosun Chair with Cushion and Side Snaps

  • Workseat with 12″ x 24″ x 1″ rigid board
  • Built-in suspension D-ring
  • Foam cushion for added comfort
  • Side snaps to support equipment
  • Durable polyester construction
  • Integral wear pads at contact areas
  • High strength corrosion resistant hardware
  • Compact and lightweight design

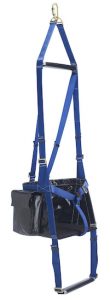

md_TwPzwbsVwa

Suspended Workman’s Chair

  • Suspended workman’s chair 15″ x 18″ x 0.75″  rigid board
  • Built-in suspension rings with Saflok™ carabiner
  • Durable polyester construction
  • Adjustable suspension straps
  • Integral side tool bags
  • Compact and lightweight design
  • Pass-thru style waist belt
  • Aluminum foot step

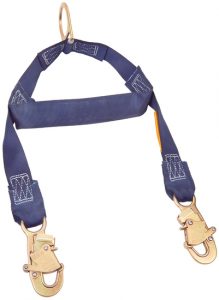

md_1umgczkUqL

Rescue/Retrieval Y-Lanyard with Spreader Bar

  • 2 ft.  rescue/retrieval Y-Lanyard
  • Keeps victim upright during rescue
  • Abrasion resistant polyester webbing
  • Built-in spreader bar
  • User friendly self locking snap hooks
  • High strength D-ring tie-off point
  • Equipped with i-Safe™
